Handtmann VF 620

Handtmann VF 620
Contact us for price
Description

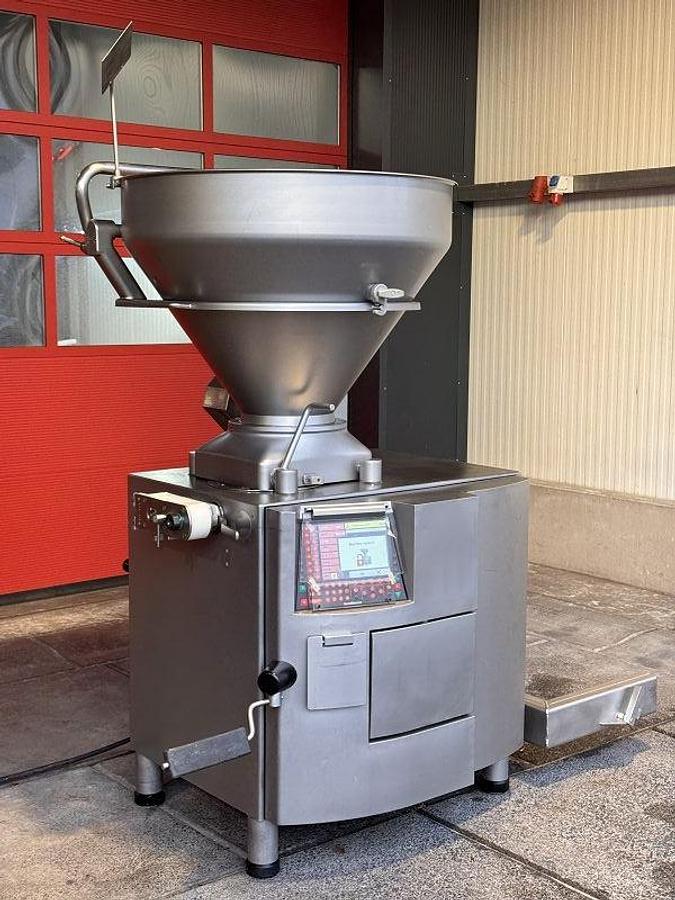

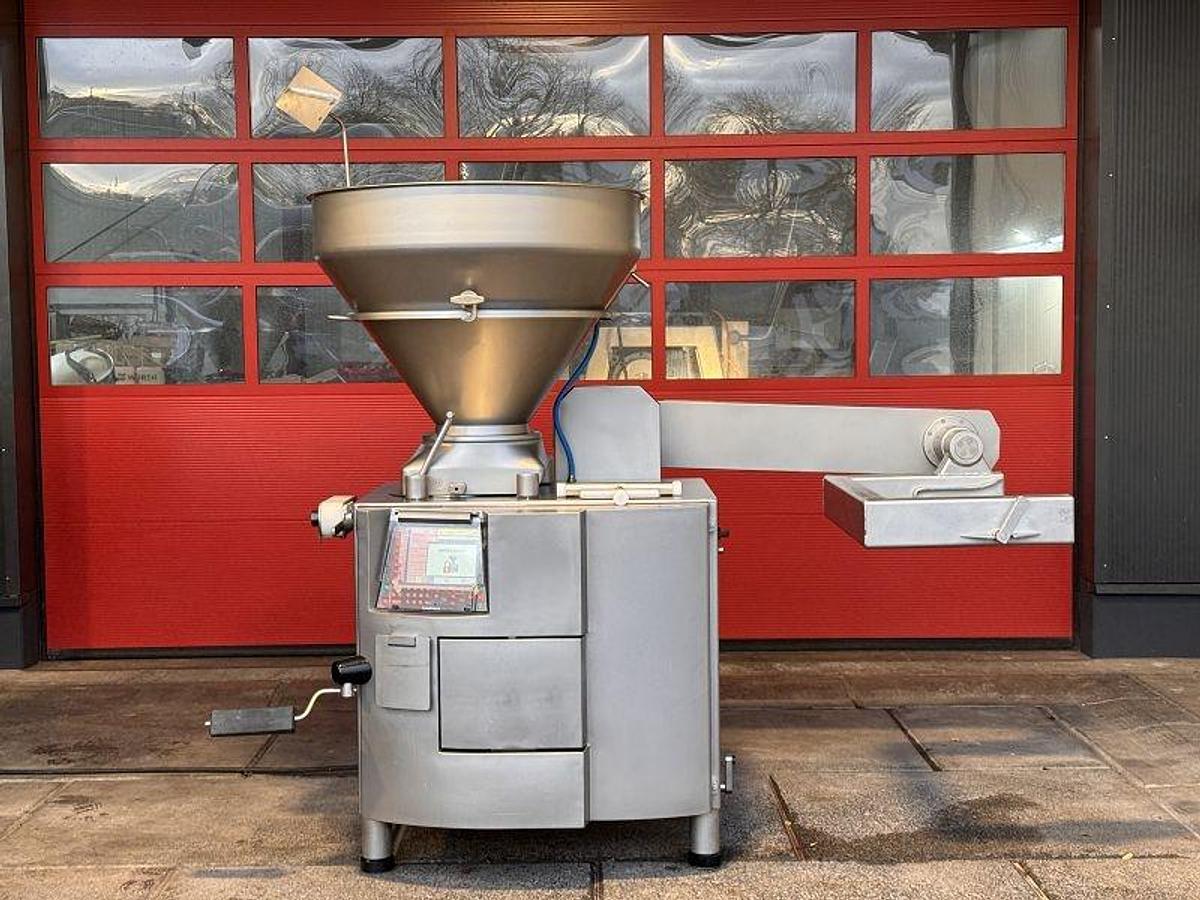

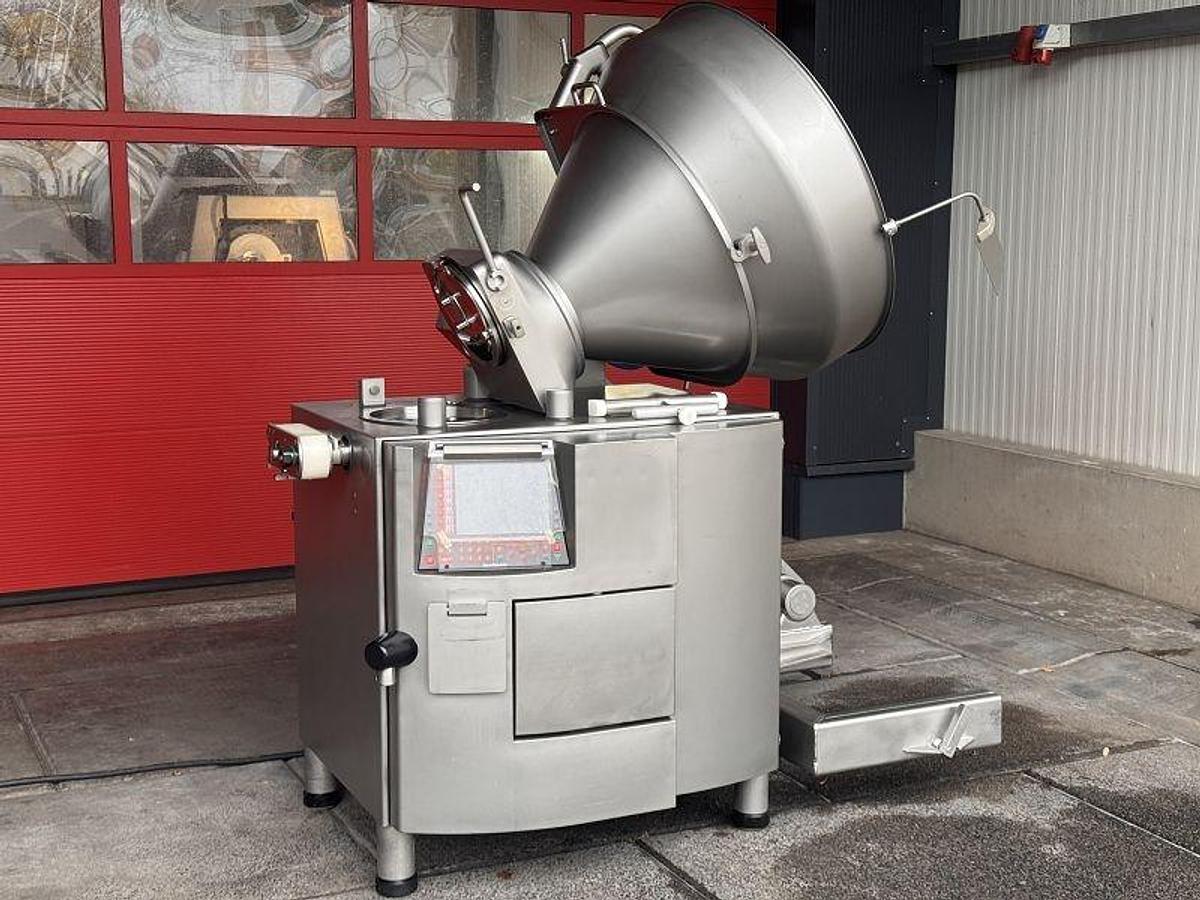

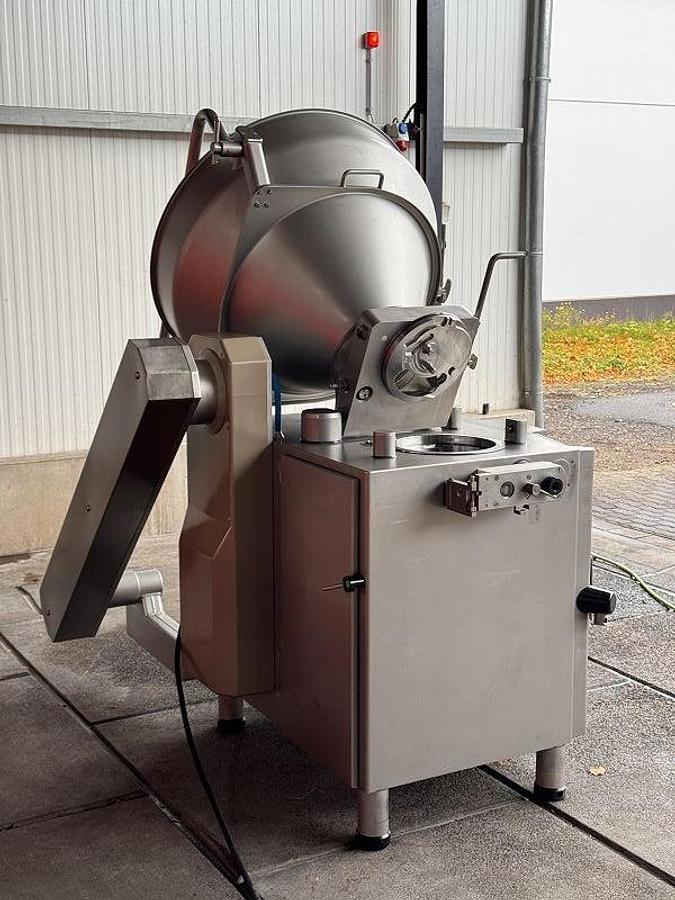

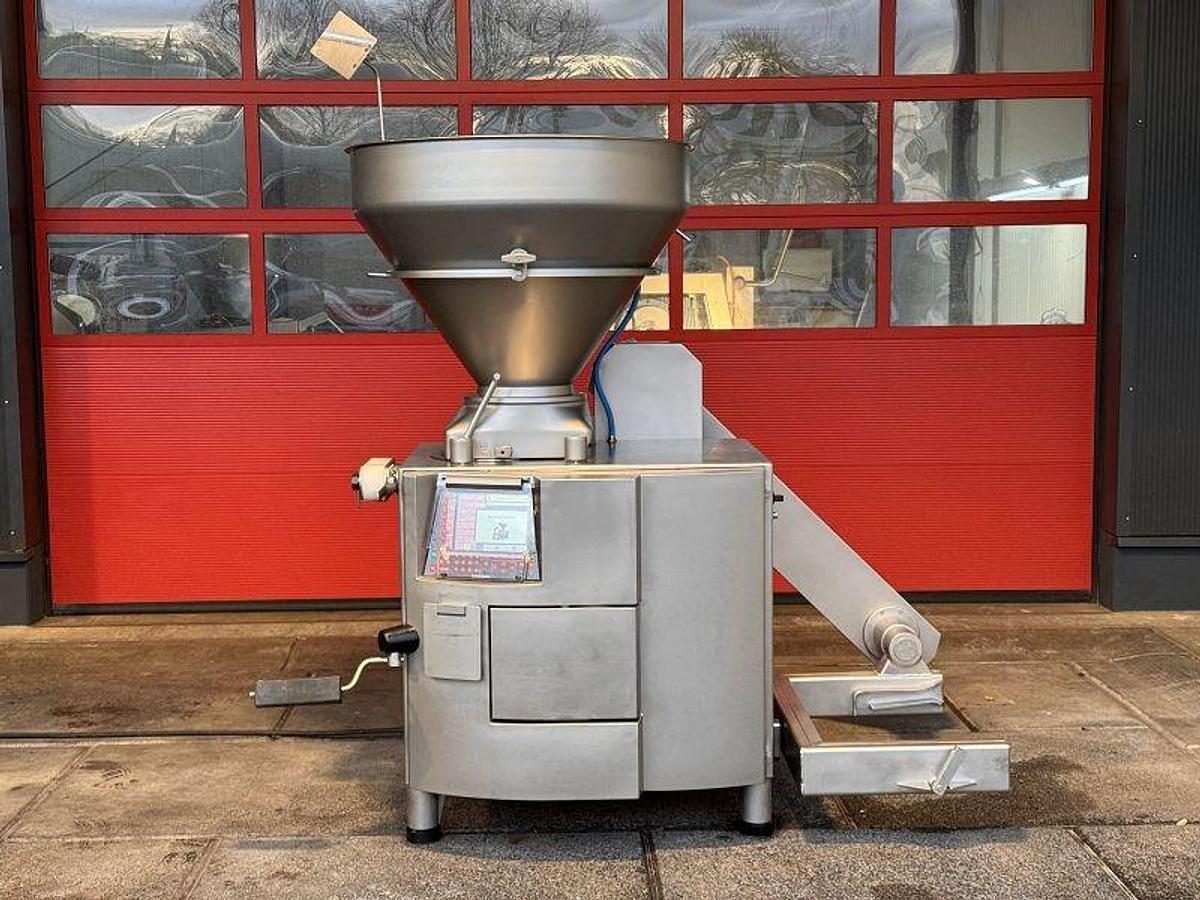

Handtmann VF 620 Vacuum Filler with Linking Unit – Completely Refurbished
Completely refurbished used machine | PCK4 control | Available from stock
For sale is a completely refurbished Handtmann VF 620 vacuum filler, equipped with a linking unit and PCK4 control system.
The machine was upgraded to the proven Handtmann PCK4 control system at an earlier stage. As part of the current refurbishment, particular attention was given to the feeding system: the VF 620 is equipped with a new rotor and new pump vanes.
The Handtmann VF 620 is a powerful industrial vacuum filler designed for filling, portioning and linking sausage, meat and a wide range of other food products. With a filling capacity of up to approximately 6,000 kg/h, the machine is suitable for demanding production environments.
The proven Handtmann vane-cell feeding system provides consistent and gentle product feeding. Combined with the vacuum system, it helps reduce air inclusions while supporting homogeneous product structure and high portioning accuracy.
Depending on product and portion size, the VF 620 can achieve a portioning and linking capacity of up to approximately 700 portions per minute. Its wide portioning range provides excellent flexibility for different products and portion sizes.

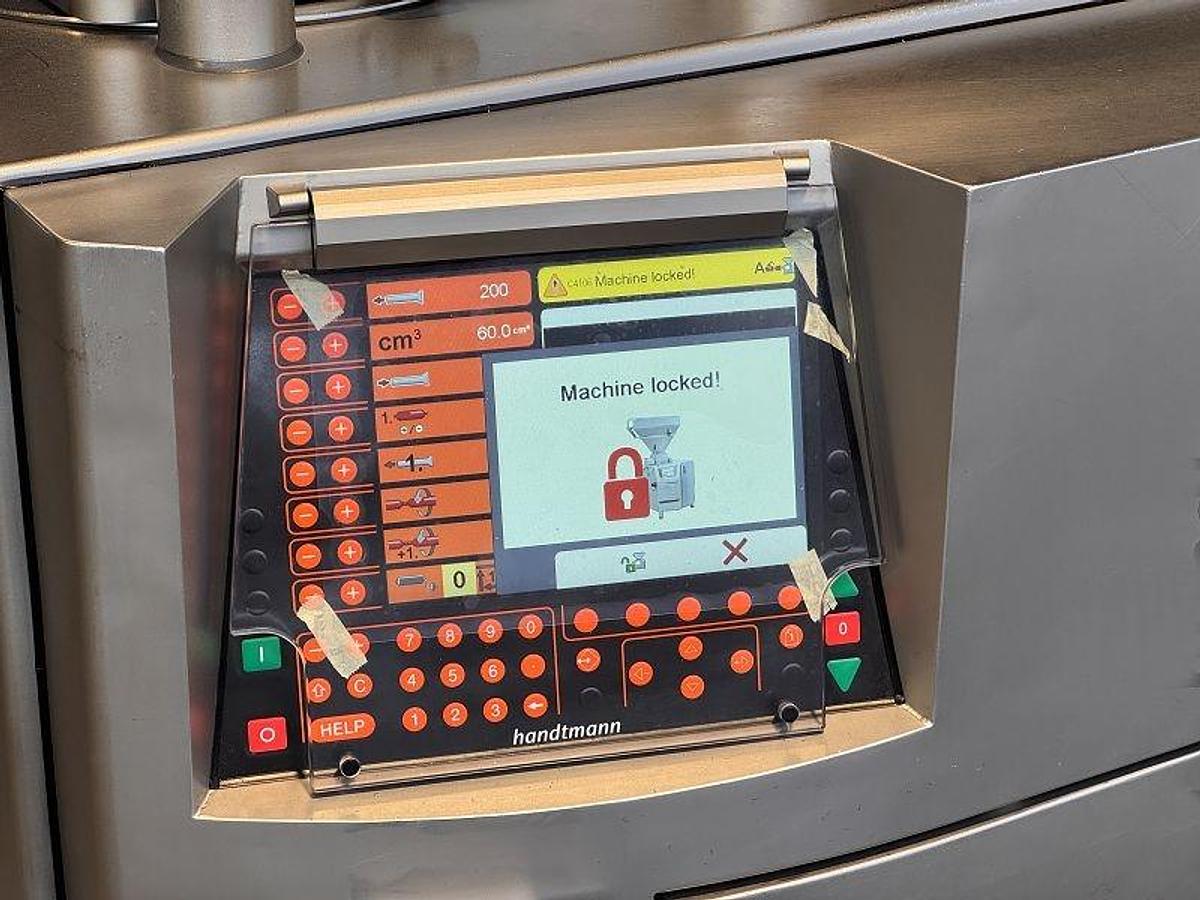

The installed PCK4 control system provides convenient and clear adjustment of the production parameters. Combined with the included linking unit, the machine is particularly suitable for the efficient production of portioned and linked sausage products.

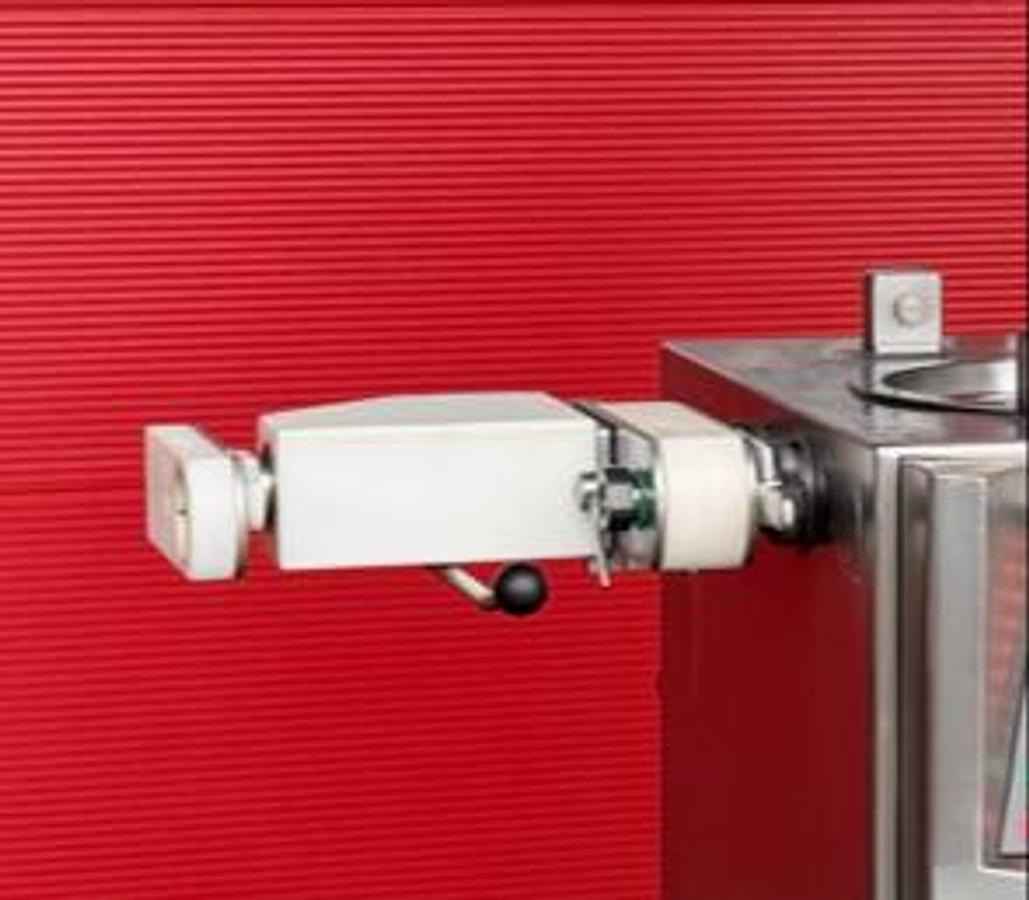

A casing holding device is optionally available.
Technical Data:
- Manufacturer: Handtmann
- Model: VF 620
- Machine type: Vacuum filler
- Condition: completely refurbished
- Control system: PCK4, previously retrofitted
- Rotor: new
- Pump vanes: new
- Linking unit: included
- Filling capacity: up to approx. 6,000 kg/h
- Maximum filling pressure: approx. 40 bar
- Portioning / linking capacity: up to approx. 700 portions/min, depending on product
- Portioning range: approx. 5–100,000 g
- Hopper capacity: approx. 90/240 litres
- Feeding system: Handtmann vane-cell feeding system
- Main drive: Servo technology
- Connected load, base machine: approx. 8 kW
- Construction: stainless steel
- Availability: available from stock
Refurbishment / Equipment:
- machine completely refurbished
- PCK4 control system installed / previously retrofitted
- new rotor
- new pump vanes
- linking unit included
- vacuum filling and portioning system
- Handtmann vane-cell feeding system
- servo drive
- stainless-steel hopper
Optional Equipment:
- casing holding device
Features:
- completely refurbished vacuum filler
- PCK4 control system
- new rotor and new pump vanes
- proven Handtmann vane-cell feeding system
- filling capacity up to approx. 6,000 kg/h
- up to approx. 700 portions/min
- accurate filling, portioning and linking
- high portioning accuracy
- gentle product feeding
- vacuum system for reducing air inclusions
- suitable for a wide range of sausage and meat products
- linking unit already included
- casing holding device optionally available
- robust and hygienic stainless-steel construction
- designed for professional and industrial production environments
Specifications
| Manufacturer | Handtmann |
| Model | VF 620 |
| Condition | Refurbished |
| Stock Number | 182921 |
| Filling Performance | 6000 kg / h |
| Portioning Range | 5-100,000 g |
| Portioning- and Linking Speed | max. 700 port. / min. |
| Filling Pressure | 40 bars |
| Hopper Volume | 90/240 Liter |
| Control | PCK 4 |
| Machine length | 2205 mm |
| Machine width | 1620 mm |
| Machine height | 2730 mm |
| Machine weight | 1360 kg |
