BAADER 604

BAADER 604-530 Separator with 2 & 4 mm Drums, Infeed Hopper and Loading System

Used machine | Year 2019 | Available from stock

For sale is a used BAADER 604-530 separator, year of manufacture 2019, equipped with an infeed hopper, loading system and two perforated drums with 2 mm and 4 mm perforations.

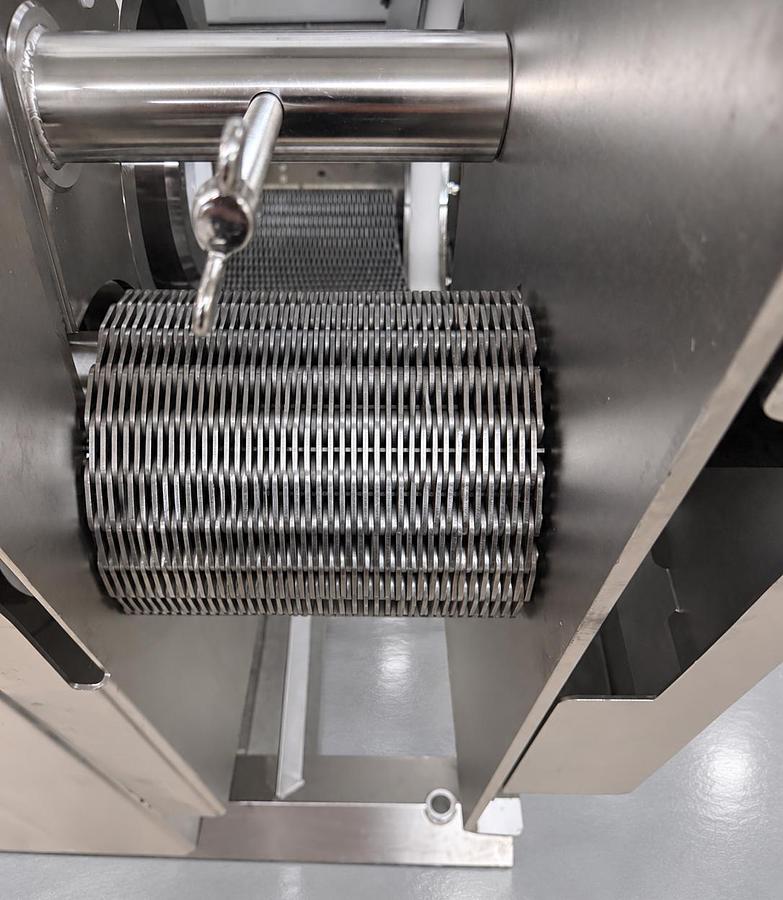

The BAADER 604-530 is a high-performance separator designed for the gentle separation of soft and solid product components. A squeezing belt feeds the product against the rotating perforated drum. Soft components are pressed through the drum openings, while harder components such as sinew, cartilage and bone particles remain outside the drum.

The machine is particularly suitable for desinewing and refining meat, but can also be used for poultry, fish and various other food products. The BAADER separation process is designed for gentle product treatment while maintaining the structure and quality of the recovered product.

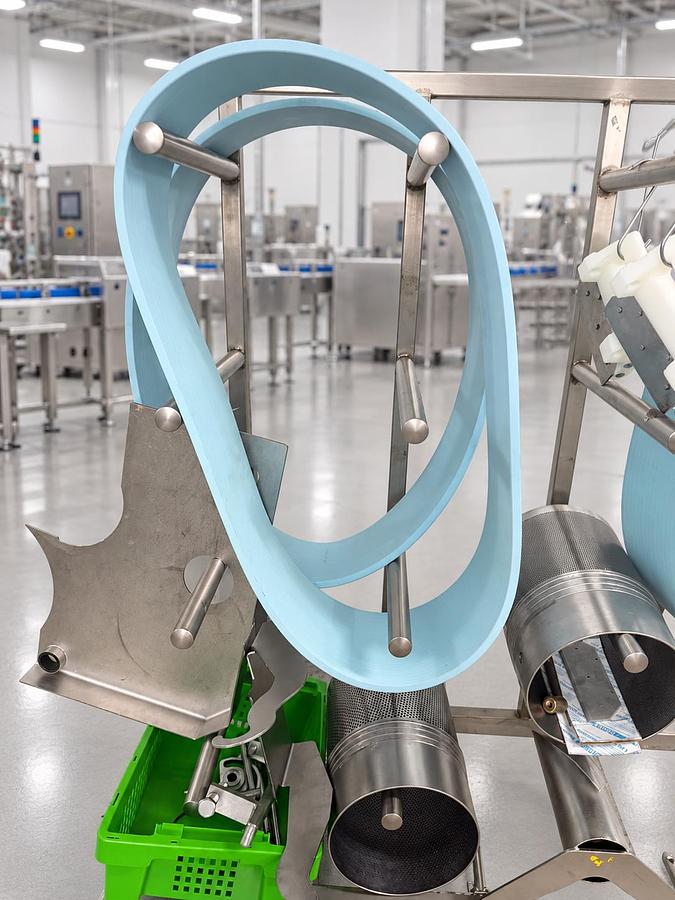

A major advantage of this particular machine is the inclusion of two different perforated drums. The machine is supplied with both a 2 mm drum and a 4 mm drum, allowing the separator to be adapted flexibly to different raw materials, desired product structures and production requirements.

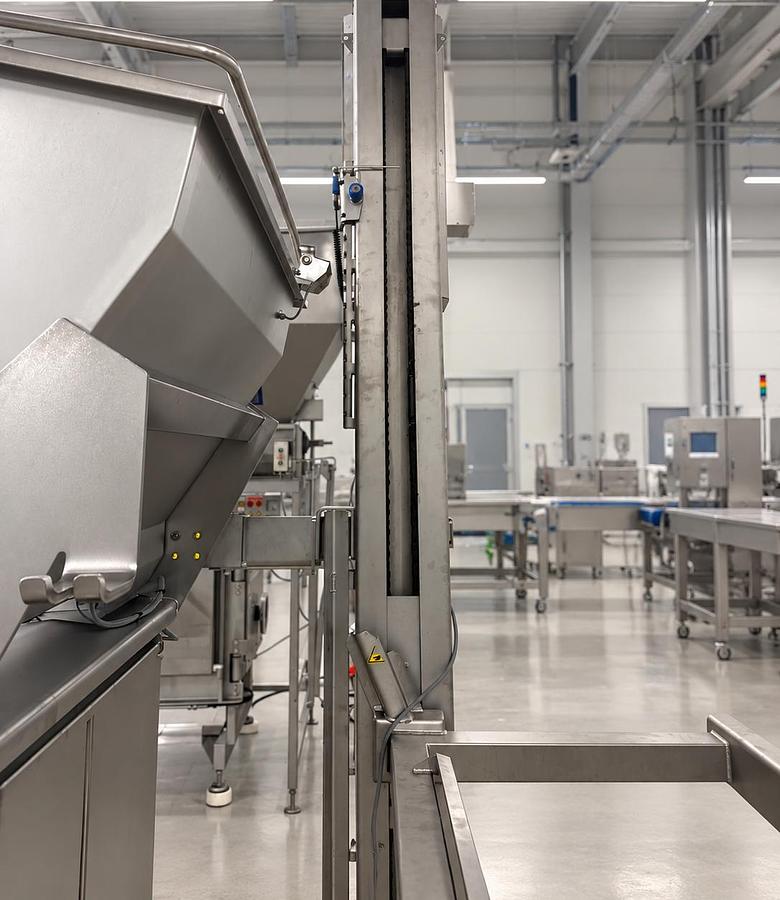

The integrated infeed hopper together with the loading system provides convenient and efficient feeding of the machine while reducing manual handling during production.

Technical Data:

• Manufacturer: BAADER
• Model: 604-530
• Machine type: Separator / desinewing machine
• Year of manufacture: 2019
• Perforated drums: 2 mm and 4 mm
• Belt width: approx. 210 mm
• Motor power: approx. 9 kW
• Electrical connection: 400 V / 3 Ph / 50 Hz
• Rated current: approx. 21 A
• Processing capacity: depending on product and drum; typically approx. 600–1,500 kg/h for BAADER 604 machines
• Infeed hopper: included
• Loading system: included
• Separator dimensions incl. structure L × W × H: approx. 1,650 × 1,500 × 2,500 mm
• Separator weight: approx. 1,200 kg
• Construction: stainless steel
• Condition: used
• Availability: available from stock

Equipment:

• 2 mm perforated drum
• 4 mm perforated drum
• infeed hopper
• loading system
• stainless-steel squeezing / conveyor belt
• 210 mm belt width
• robust stainless-steel construction

Features:

• gentle separation of soft and solid product components
• ideal for meat desinewing and refining
• also suitable for poultry, fish and various other products
• two drum sizes for flexible production requirements
• easy adaptation to different raw materials and product qualities
• consistent and reproducible separation
• designed to maintain product quality and meat structure
• adjustable separation pressure for balancing yield and product quality
• convenient feeding via hopper and loading system
• high production capacity
• robust stainless-steel construction
• hygienic and easily accessible design
• designed for professional and industrial production environments
